︎ Electric eCigarette Vape
This small handheld device was an ecig pod system vaporizer for Delta-9 concentrates. The oilly concentrate is filled into the semi clear top “pod”. Inside is a wick and electric coil. Just like standard eCigs, the device was very small. The orange body was to be made out of aluminium or kirksite. The pods were held in with magnets and the electrical connection is made with two pogo pins. Air flow would go through planned cracks around the pod and up through the bottom. As the air passed, the electric coil would vaporized the oil soaked in the cotton wick.
I hold an inventor patent for the unique design of this device. Unfortunatly, the product never made it to manufacturing due to company changing priorities.
Links: Patents.Google

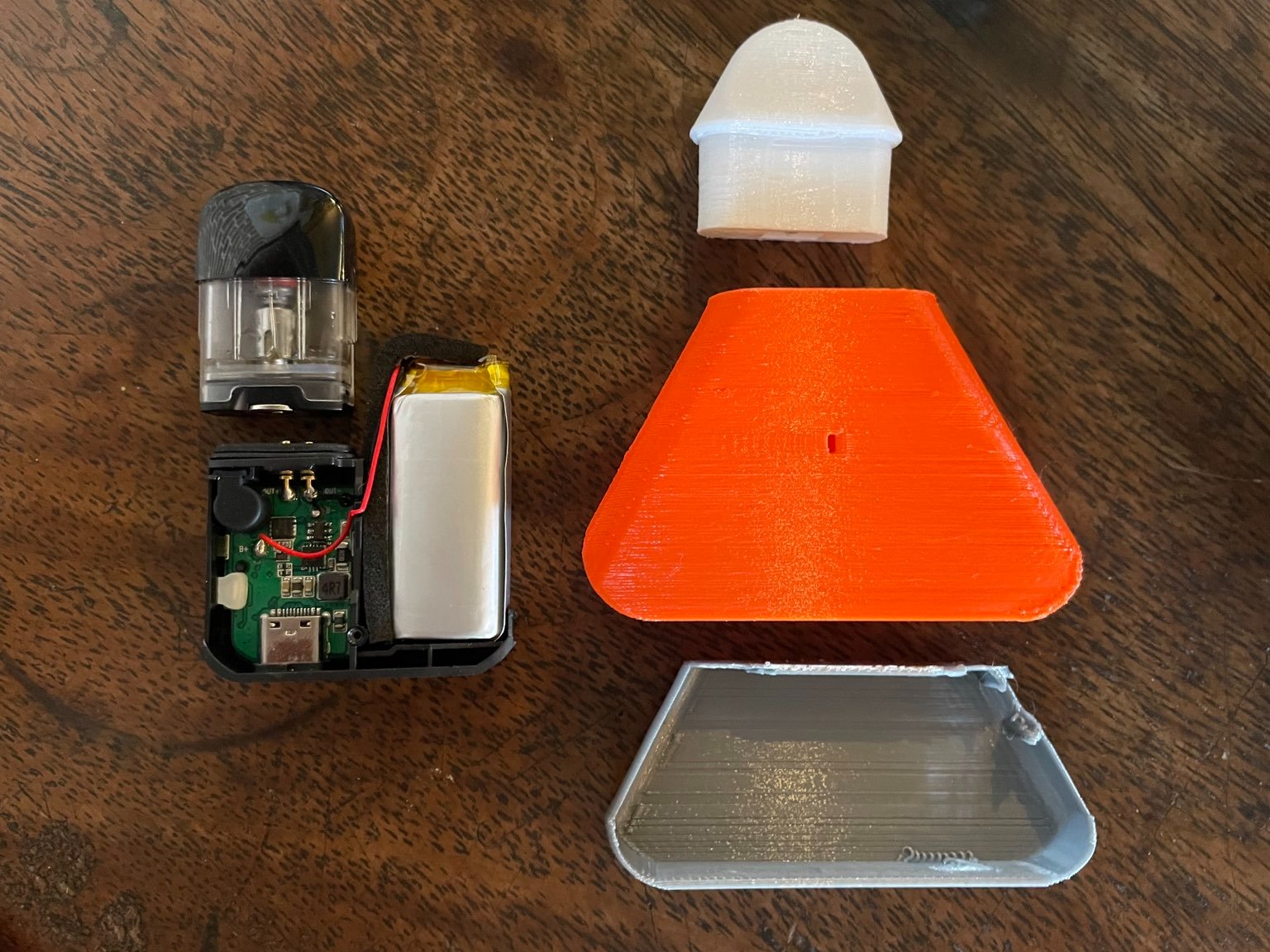

︎Initial Prototype

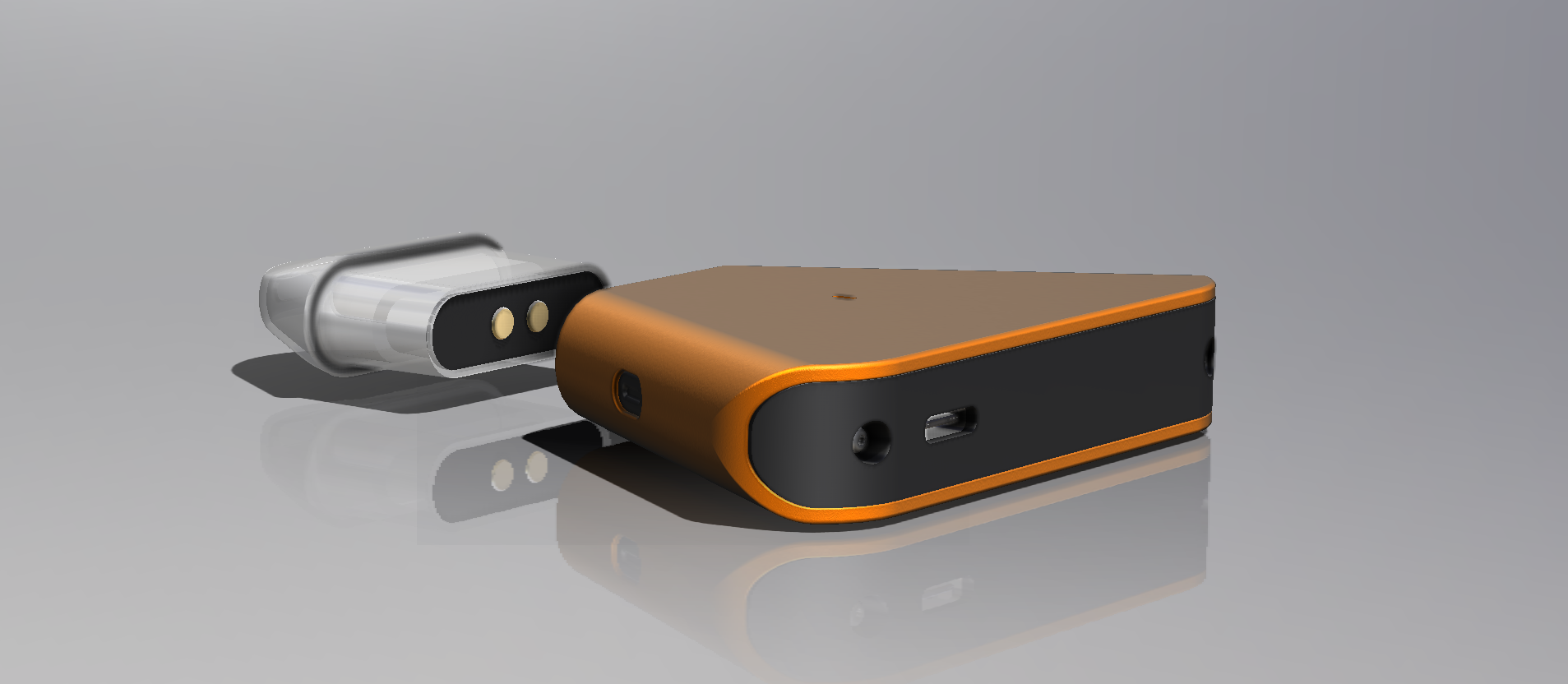

︎CAD Model
